VS4/SL Series

Overview

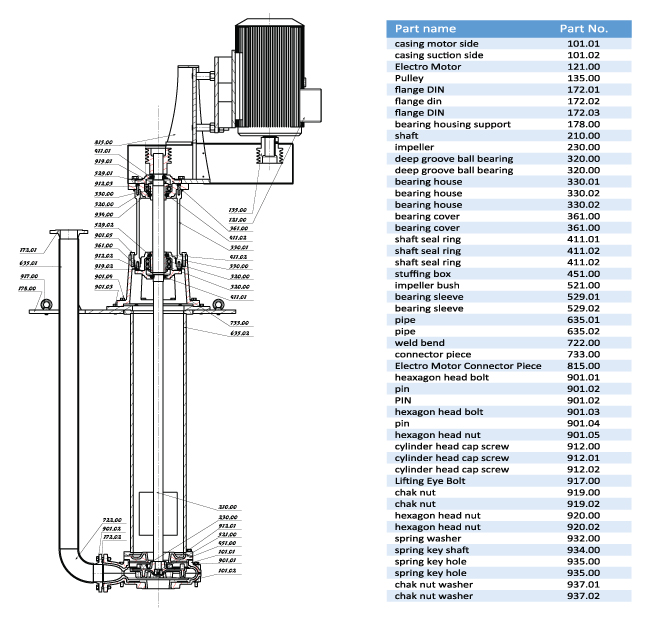

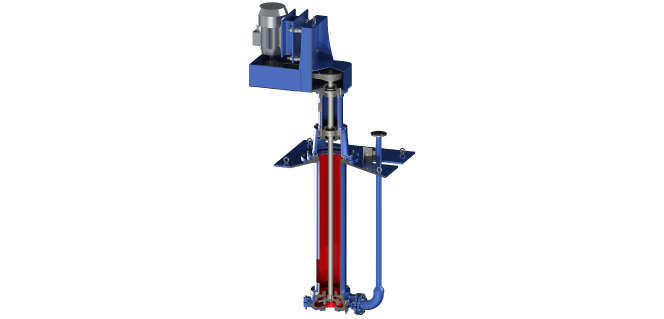

Sectional View

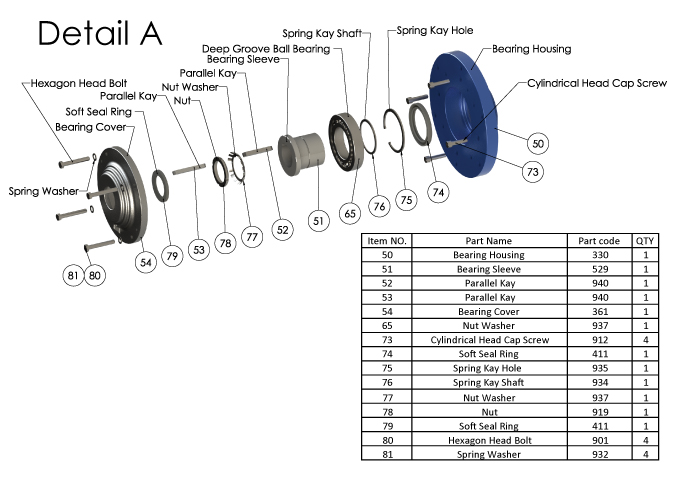

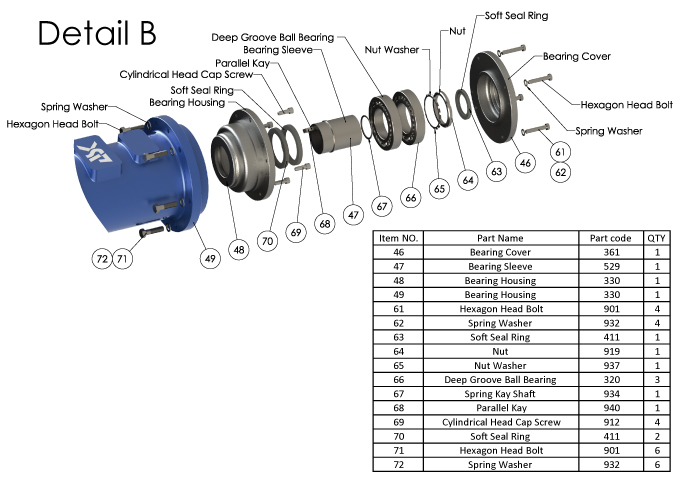

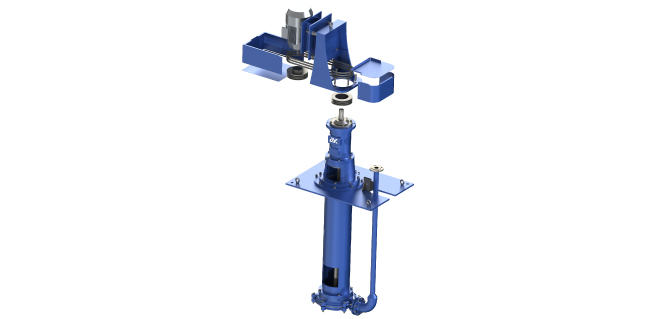

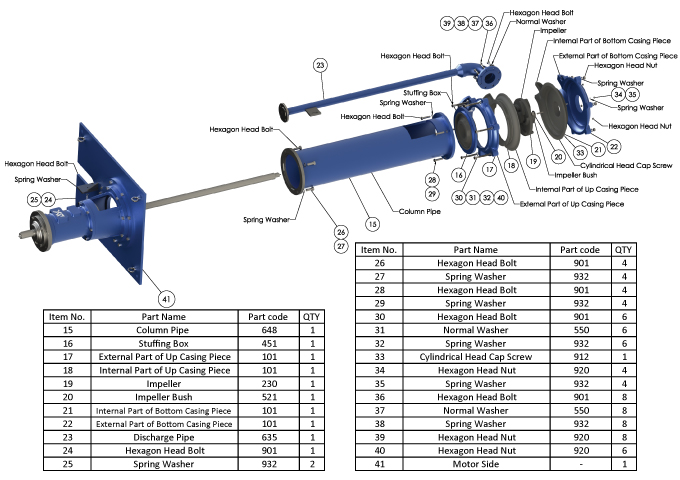

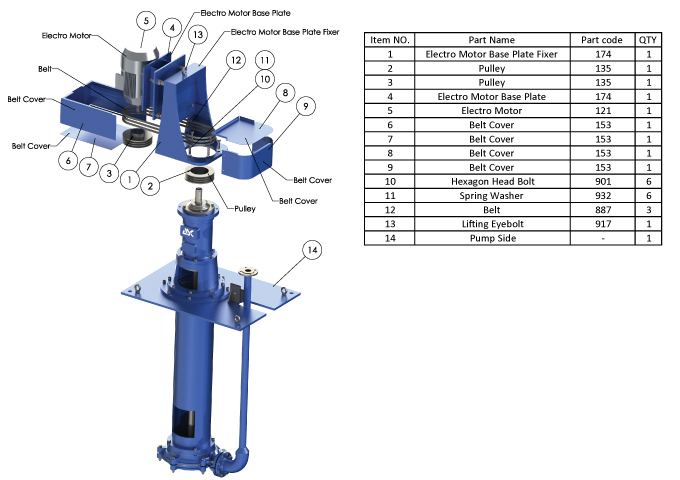

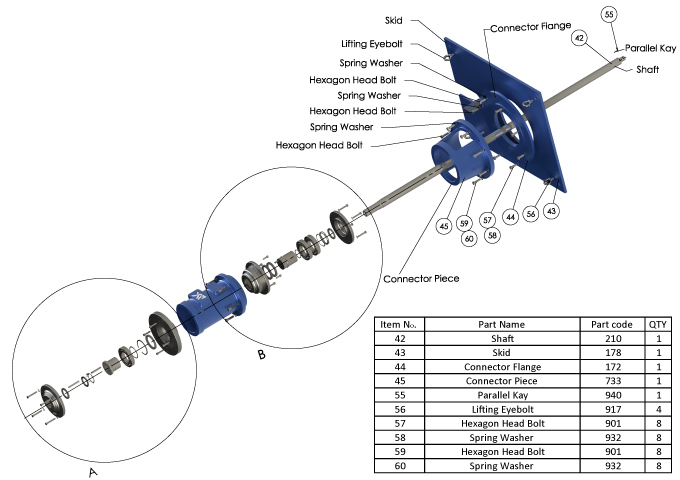

Exploded View

Performance

Documents

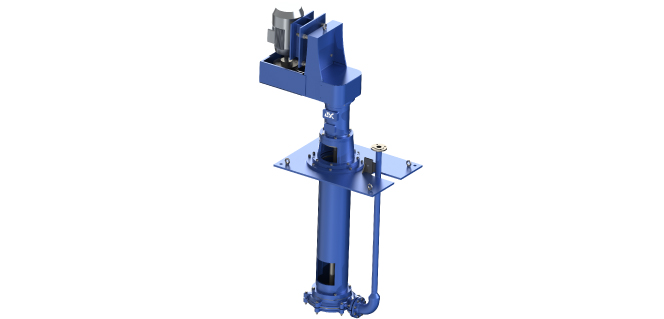

Vertically suspended, Rubber lined, Radially split Volute casing, Rubber lined, semi-open or closed impeller, Centrifugal slurry pump to Factory Standard



• Flow rate (Max.):   250 m3/hr

• Differential head (Max.): 70 m

• Speed (Max.): 2200 rpm

• Suction pressure rating: Up to 6 bar g

• MAWP: 16 bar g

• Operating temperature: up to 80 ˚C

• Design temperature: 50 ˚C



  • Application

    • Paper and pulp industry
    • Effluent treatment plants
    • Sand beneficiation plants
    • Ore beneficiation plants
    • Plywood industry
    • Sugar industry
    • power stations
    • Glass and picture tube industry
    • Mining and mineral processing

  • Benefits

    • Optimum material selection
    • Ease of maintenance
    • Robust shaft
    • Heavy duty bearing assembly
    • Replaceable casing components
    • No submerged bearings

  • Options

    • Large range of materials for many applications available
    • Grease or oil lubricated bearings
    • Several arrangements for pump and motor available
    • Several methods of power transmission available
    • Local control panel and instrumentation

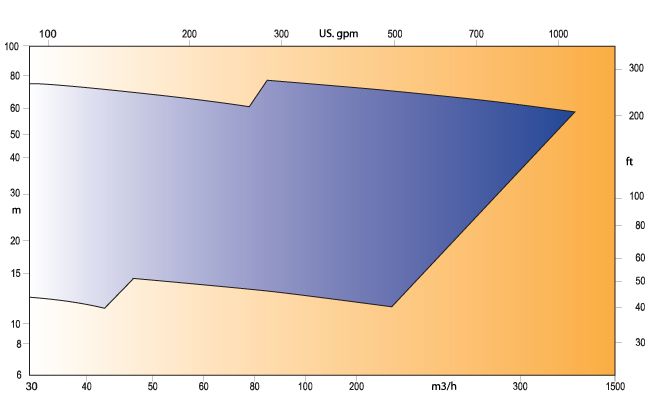

ASK Hydraulic Coverage

VS4/SL series



Other hydraulics on request



  • Catalogue

    VS4/SL- Catalogue 2015

  • IOM

    VS4/SL- IOM 2015

  • Data-sheet Forms

    VS4/SL- Compact Data-sheet

  • Technical Drawings

    • General Arrangements

      VS4/SL 50-315/22 4 R1 150 / 0.76

      VS4/SL 100-315/30 4 P 160/SA

    • Sectional Drawings

      VS4/SL F / 50-315-11 6 R1(P8.00)160/0.6
